- 3 row arrangement (Class name, Attributes, Methods)
- An optional 4 row (Responsibilities) can be added to mention what is expected of the class
- Class name is the only mandatory field
- Attributes
- Format ⇒
<access specifier> <attribute name> : <data type> /⇒ derived attribute, not an actual data member+⇒ public#⇒ protected-⇒ private~⇒ package level visibility- Static attributes ⇒ to be underlined
- Format ⇒
- Methods,
- Use the function signature
+⇒ public#⇒ protected-⇒ private- Static member function ⇒ mention no access specifier
- If the class name is preceded by
<<abstract>>, then it’s an abstract class, (italics were used in older UMLs)

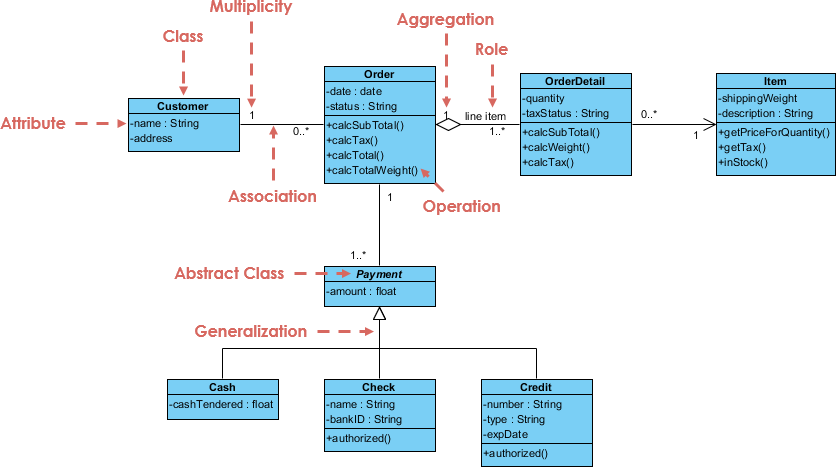

Example,
